Description

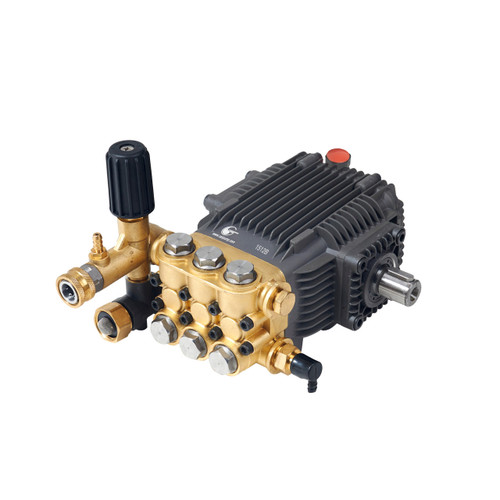

The Canpump CF 3222 GB is a high-performance pressure washer pump that delivers 3200 psi at 2.2 US gpm. It features a 3/4-inch shaft and a gearbox reduction for smooth operation.
Gearbox Drive for Extended Durability
This pump features a gearbox drive system, which reduces operating speed significantly compared to direct drive pumps. While direct drive units typically run at around 3400 rpm, gearbox-driven pumps operate at much lower speeds — often between 1500 and 1750 rpm depending on the configuration. This slower operation reduces wear and heat, resulting in longer pump life and making it ideal for commercial and continuous-use applications.
- Model: CF 3222 GB
- Pressure: 3200 psi (220 bar)
- Flow rate: 2.2 US gpm (8.3 L/min)
- Power: 6.5 hp
- RPM: Gearbox reduction 3400-1560 rpm
- Pump mechanism: Triplex plunger
- Pump Inlet: ½″ NPT F
- Pump Oulet: ⅜" NPT F
- Unloader valve: Detachable (bolt-on) unloader valve, pressure-adjustable with 20:1 detergent injector and built-in water filter
- Unloader Inlet: ¾″ standard garden hose
- Unloader Outlet: Quick-connect
- Includes: Detergent tube with strainer and operating manual with spare parts list
- Oil grade: SAE 15W-40 oil
- Compatibility: Standard SAE J609 mounting flange for up to 7 hp direct-drive gasoline engines with ¾″ horizontal shafts
*The flange should be flush to engine when fully seated to avoid damage while tightening bolts. If not flush when fully seated on shaft, then spacers are required.
